Description
JHX Large format roll to roll flying laser engraving machine, adopts advanced 3D dynamic galvanometer engraving technology, automatically adjusts the distance between the laser head and the textile roll. The specially developed laser motion control system and flying optical path structure ensure precise and smooth laser movement. The synchronous automatic feeding system enables unlimited-length engraving of the entire fabric roll, and automatic continuous processing without pauses.
For plush fabric, denim fabric, home textile fabrics, and personalized artistic processing of clothing, it meets the requirements of trendy applications and significantly improves the quality and added value of fabric processing.
Product features
1. Roll-to-roll fabric embossing, through creative embossing, brings personalized value-added to the fabric.
2. No need to make printing molds, by importing design graphics, various styles of embossing can be completed through laser.
3. Through flying engraving technology, the engraving area can reach 2200mm at one time, without any splicing.
4. The feeding and flying laser embossing are carried out simultaneously, ensuring the continuity of the graphics, and the embossing length can be infinitely extended.

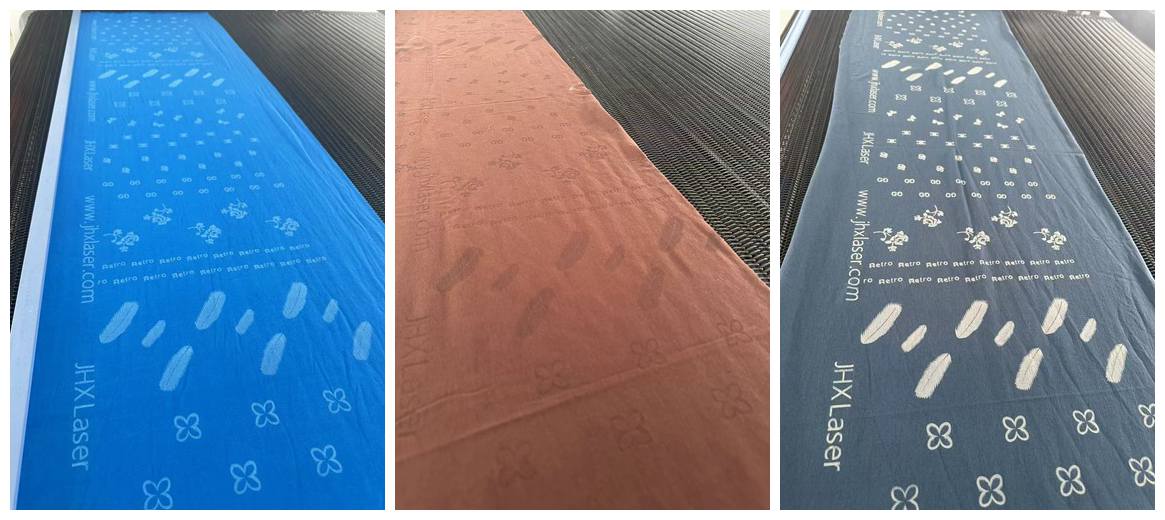

Application examples
Application materials and industries
It is suitable for super cashmere,denim,leather,flocking cloth,wallpaper wall cloth,velvet,corduroy,velvet,chenille, science and technology cloth,woolen fabric, sports fabric, towel blanket, TR, brocade ammonia fabric and other knitted, woven, non-woven fabrics.
It is applied to clothing, fabric, wallpaper, luggage,home, hotel, advertising,exhibition decoration, automobile decoration and other industries.

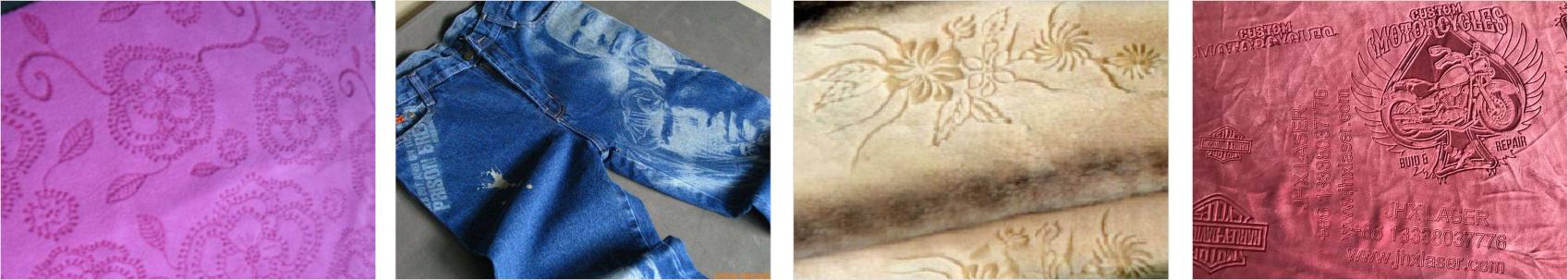

Application examples
Product model | JHX-160100/180100/200100/220100 |
Laser type | Hermetical and detached Co2 laser tube |
Laser power | Option：130W/150W/180W/300W |
Cutting area (mm) | 1000×Y infinitely long/1800×Y infinitely long/2000×Y infinitely long/2200×Y infinitely long |
Control software | JHX professional controlling software |
Cooling method | Water-cooling |
Cutting speed | 0-12000mm/s |
Positioning accuracy | ≤0.01mm |
Cutting power control | Fine tuning possible |
Working voltage | 220V±10% 50-60HZ |
Moving system | Imported servo system |
Equipment accessories | Wind pump, Wind pipe etc |
Data format | AΙ/BMP/PLT/DXF/DSΤ |
Different specifications and sizes can be customized;Import metal encapsulating RF Co2 laser is optional. | |
