description

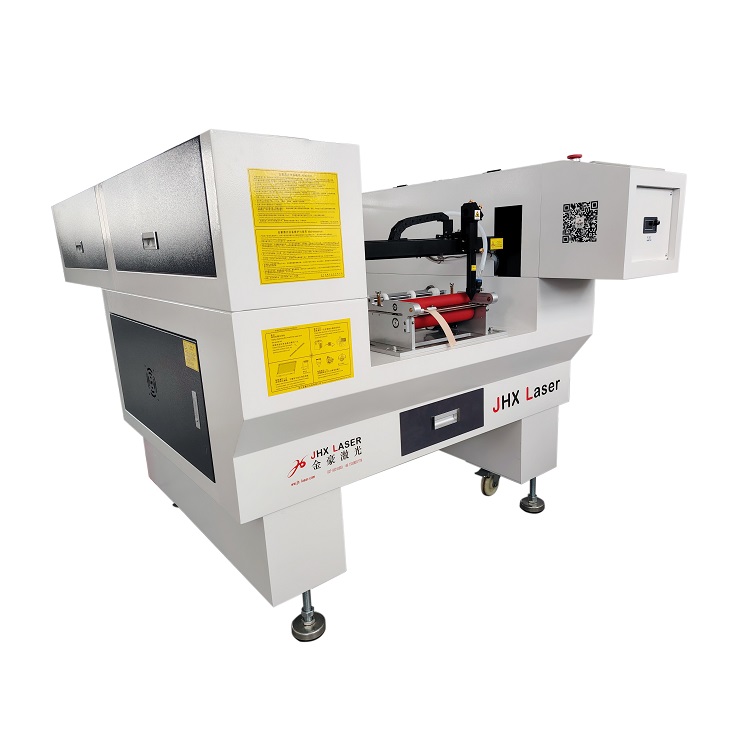

JHX Webbing Laser Cutting Machine adopts laser cutting, a non-contact thermal processing method, with automatic trimming of the cut edge, no burrs, no loose edges, and no wire drawing. Suitable for cutting and punching products such as webbing, colored tapes, nylon tapes, woven tapes, textile tapes, elastic tapes, buckle tapes, seat belts, PP tapes, plastic tapes, zippers, velcro, etc. Widely used in ribbon factories, webbing factories, elastic band factories, silk ribbon, packaging, gifts and other related industries.
Product Features
1. Laser cutting is used, with neat and smooth edges, automatic edge sealing, no burrs, no loose edges, and no wire drawing;
2. Automatic feeding, fast speed, easy and efficient width adjustment;
3. It can cut circles, ellipses, squares, rectangles, single holes, multiple holes, mixed holes, and various irregular hole shapes.
Applicable materials and industries
Suitable for cutting and punching products such as webbing, colored tapes, nylon tapes, woven tapes, textile tapes, elastic tapes, buckle tapes, seat belts, PP tapes, plastic tapes, zippers, Velcro, etc.
Widely used in ribbon factories, webbing factories, elastic band factories, silk ribbon,packaging, gifts and other related industries.
Application scenes
Application video
Tags:
Applicable materials and industries
Suitable for cutting and punching products such as webbing, colored tapes, nylon tapes, woven tapes, textile tapes, elastic tapes, buckle tapes, seat belts, PP tapes, plastic tapes, zippers, Velcro, etc.
Widely used in ribbon factories, webbing factories, elastic band factories, silk ribbon,packaging, gifts and other related industries.
Polyester webbing
PP webbing
Product model | JHX-9060/JHX-6040 |
Laser type | Hermetical and detached Co2 laser tube |
Laser power | Option：80W/100W |
Cutting area (mm) | 30×30/20×20 |
Control software | JHX professional controlling software |
Cooling method | Water-cooling |
Cutting speed | 0-2000mm/s(Adjust according to material and thickness) |
Positioning accuracy | ≤0.01mm |
Cutting power control | Fine tuning possible |
Working voltage | 220V±10% 50-60HZ |
Moving system | Imported servo system |
Equipment accessories | Wind pump, Wind pipe etc |
Data format | AΙ/BMP/PLT/DXF/DSΤ |
Different specifications and sizes can be customized; Import metal encapsulating RF Co2 laser is optional. | |
