Description
Carpet and foot mat laser cutting bed adopts a gantry structure, loaded with high-power CO2 laser, imported belt drive, and our company's cutting machine dedicated software to achieve precise cutting and fast cutting speed.
Product Features
1. High-Precision Cutting: Advanced laser technology achieves ±0.1mm accuracy, reproducing intricate patterns flawlessly.
2. Intelligent Control System: Equipped with graphic recognition and automatic path planning, supporting CAD file direct reading, improving operational efficiency by 40%.
3. Multi-Material Compatibility: Cuts wool, nylon, polypropylene, and blended carpets with 1-20mm thickness range.
4. Eco-Friendly Design: Smart power adjustment system reduces energy consumption by 30%, producing zero dust pollution.
5. Edge Sealing: Instant thermal fusion (300-500°C) creates sealed edges, preventing fraying - especially crucial for natural fibers like wool.
6. A dedicated automatic feeding device can be optionally selected to achieve continuous cutting.
Application scenes

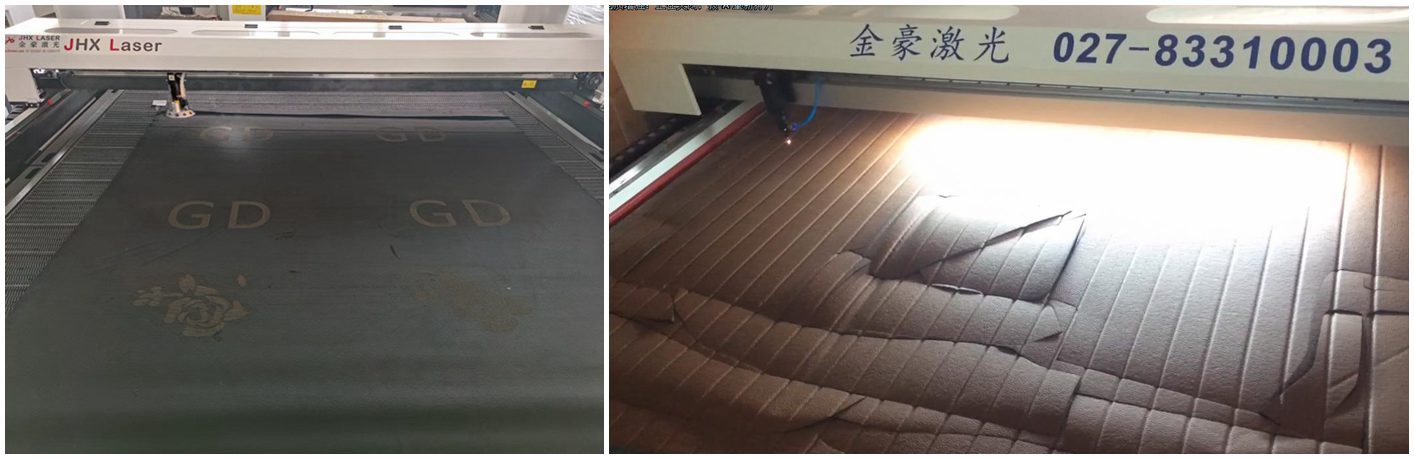

Application examples
Tags:
Applicable materials and industries
Suitable for cutting chemical synthetic fibers such as nylon, polyester, polypropylene fibers, acrylic fibers, blended fabrics, and synthetic leather, as well as natural fibers such as wool and silk;
Applied to the home decoration industry such as carpets, floor mats, and seat cushions, as well as the automotive interior industry.
Application examples
Product model | JHX-180250/180400 |
Laser type | Hermetical and detached Co2 laser tube |
Laser power | Option：130W/150W/180W/300W |
Cutting area (mm) | 1800×2500/1800×4000 |
Control software | JHX professional controlling software |
Cooling method | Water-cooling |
Cutting speed | 0-1500mm/s |
Positioning accuracy | ≤±0.01mm |
Cutting power control | Fine tuning possible |
Working voltage | 220V±10% 50-60HZ |
Moving system | Imported servo system |
Equipment accessories | Wind pump, Wind pipe etc |
Data format | AΙ/BMP/PLT/DXF/DSΤ |
Different specifications and sizes can be customized; Import metal encapsulating RF Co2 laser is optional. | |
Optional device
