Description

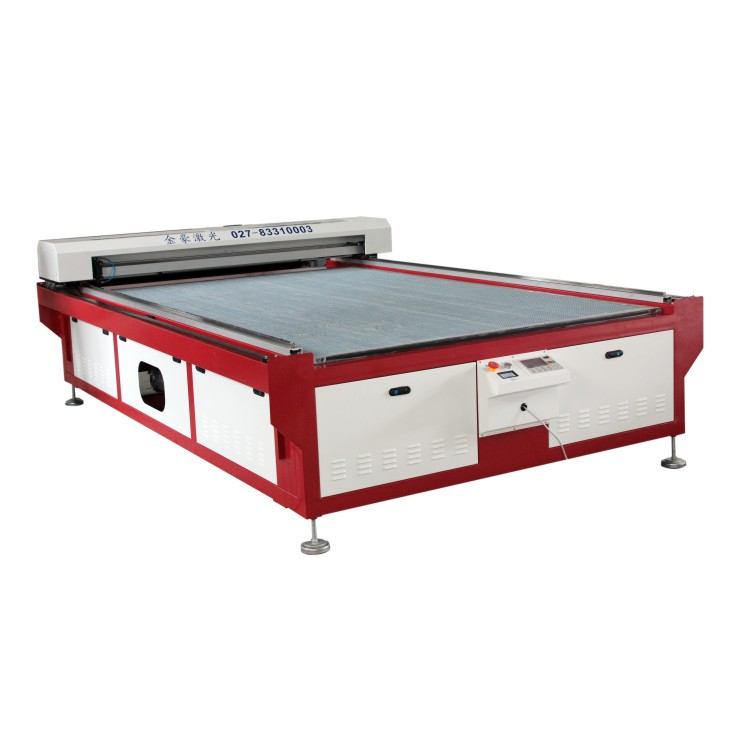

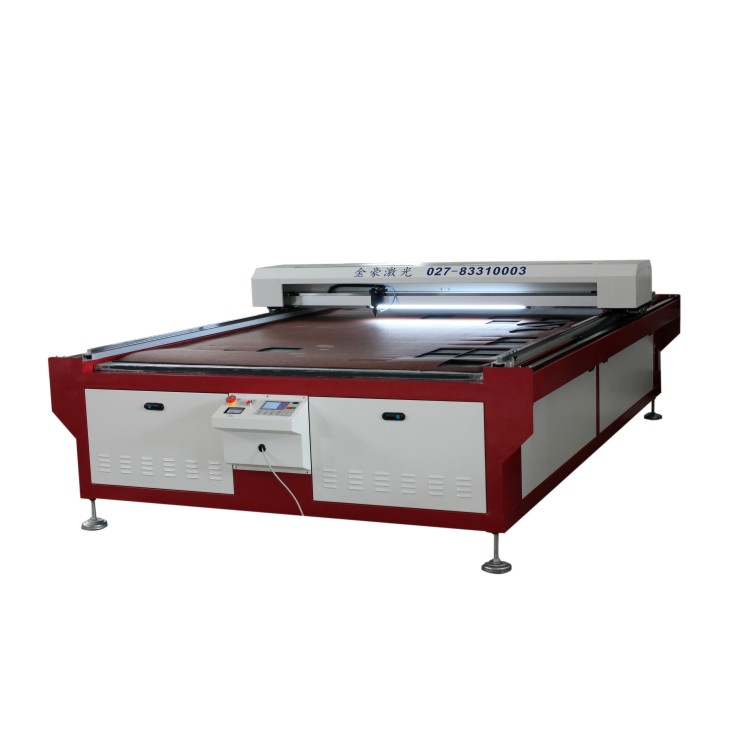

Automotive interior laser cutting bed adopts linear guide rails and gear racks to drive the gantry to move. The high-power CO2 laser tube is installed on the gantry, and with a fixed optical path design, the laser energy utilization efficiency is high, the structure is stable, the cutting speed is fast, the accuracy is high, and the effect is good.
Product Features
1. High precision gears and racks drive, with high precision, Cutting efficiency with speed up to 1500mm/s;
2. Hybrid optical path, high light energy utilization efficiency and strong safety;
3. Negative pressure honeycomb work platform, low laser reflectivity, effectively absorbs cutting smoke and dust;
4. The unique motion control system software algorithm ensures that there is no overshoot or lag phenomenon in the flexible processing of laser head adjustment motion.
Application examples
Tags:
Applicable materials and industries
Suitable for cloth, leather, rubber, plastic, synthetic materials, etc.
Applied to:Laser cutting of leather textile fabrics such as car seat cushions, car floor mats, and car interior and exterior decorations; Cutting, punching and positioning of special materials such as seat heaters, sunshades, and roof lining.
Application examples
Product model | JHX-160300PT |
Laser type | Hermetical and detached Co2 laser tube |
Laser power | Option：130W/150W/180W |
Cutting area (mm) | 1600×3000 |
Control software | JHX professional controlling software |
Cooling method | Water-cooling |
Cutting speed | 0-1500mm/s |
Location precision | ≤±0.02mm |
Cutting power control | Fine tuning possible |
Working voltage | 220V±10% 50-60HZ |
Moving system | Imported servo system |
Equipment accessories | Wind pump, Wind pipe etc |
Data format | AΙ/BMP/PLT/DXF/DSΤ |
Different specifications and sizes can be customized; Import metal encapsulating RF Co2 laser is optional. | |
Optional device
